工業級 19"機架式ON-LINE不斷電系統 TWR-1KVA~3KVA











工業級 19"機架式ON-LINE不斷電系統 UPS規範

容量: TWR-1KVA  1.5KVA 2KVA  3KVA  (可訂製 5KVA~30KVA 機架式型式)
‧輸入電壓: 110VAC (電壓可調 115V 100V 120V)  OR   220VAC (電壓可調 200V 230V 240V)
‧輸出頻率: 50HZ/60HZ(自動偵測)
‧輸出電壓穩定度: +/- 1.5%
‧輸出波形: 正弦波
‧輸出波形失真:
‧輸出波形因素: 3比1
‧自動旁路: 供過載或UPS不正常使用
‧旁路轉換時間: 市電模式轉換製電池模式0ms,變流模式轉換至旁路2ms
‧液晶顯示: 電壓,頻率,負載狀態,電池狀態
‧放電警報指示: 當輸入電源斷電時每4秒發警告聲,當電池將用完時每秒發警告聲
‧超載警報指示: 每秒鳴叫兩聲
‧系統異常警報指示: 連續聲
‧雷擊/突波保護: 240焦耳
‧通訊介面:USB監控軟體
‧操作溫度: 0度 - 40度 (滿載時)
‧操作濕度: 0 - 95% (不結霜)
‧環境噪音: 小於 40dB (1公尺)
‧原廠保固: 1年 (非人為/天災因素損壞)
‧安規規範: BSMI
‧EMC安規: CE (EN50091-2)
‧電池型號: 密閉是鉛酸免保養電池
‧最大充電電流:1A
‧充電時間:5小時回充至90%以上電位
 產地:騰旺企業 台灣桃園龜山廠製造 大人氣の UPS台灣製造

技術標準相關準則製造測試

中華民國國家標準(CNS BSMI)

ANSI(American National Standards Institute)

CSA(Canadian Standards Association)

IEC(International Electrotechnical Commission)

IEEE(Institute of Electrical and Electronic Engineers)

NEMA(National Electrical Manufacturer's Association)

UL(Underwriters' Laboratories, Inc.)

JEC(Japaness Electrotechnical Committee)



MODEL

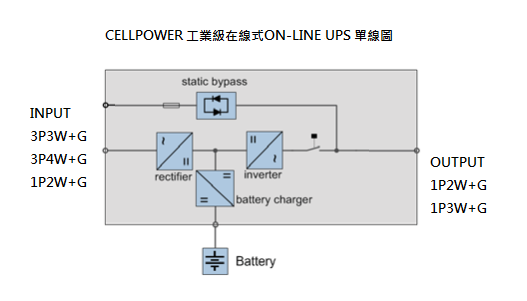

TWR系列 ON-LINE UPS TW CELLPOWER (機架式工業級高頻隔離)

Capacity

1KVA        1.5KVA       2KVA      3KVA

INPUT

Phase

Single Phase

Nominal Voltage

110V 100V 115V 200V 220Vac

Voltage Range

+-20%

Frequency

50Hz / 60Hz ± 4Hz

Power Factor

≥0.99

OUTPUT

Voltage

110V 100V 115V 200V 220VAC ± 1%

Frequency

Synchronized ( Line mode) 50Hz or 60Hz +/-0.5% (Battery mode)

Wave Form

Sine wave

Distortion

                                                          ≤3%(Linear load)



Overload Capacity

105% - 125% :5 min,125%~150%: 30 sec.>150% : 200ms

Crest Ratio

3:1

BATTERY

Back-up Time

5min~10min

BYPASS

Automatic

Overload or UPS fault

INDICATOR

LCD (Series)

UPS status, I/P&O/P Voltage/Frequency ,Load %, Battery voltage, Battery capacity %, Temperature, Model spec., Event log.

AUDIBLE ALARM

Battery Mode

Beeping every 4 seconds (re-settable)

Battery Low

Beeping every seconds

Overload

Beeping twice per second

Fault

Beeping continuously

INTERFACE

RS-232 Interface

UPSilon2000 monitoring software for Windows all, Unix systems and Novell

Multi-Interface Slot

SNMP card, AS 400, Dry contact, USB selectable

ENVIRONMENT

Temperature

0-40 (32-104 )

Humidity

0-95% (non-condensing)

Audible Noise(At 1M )

50 dBA

PHYSICAL

Weight(Kg, without battery)

1KVA (19kg) 1.5KVA (21 kg) 2KVA (37kg)   3KVA (40 kg)

Dimensions(W*H*D)mm                                                         1KVA 1.5KVA (440*2U 88*480)*1 2KVA 3KVA(440*2U 88*480)*2
